| Materiaal: | Grade 4 |
| Veiligheidsfactor: | MBL is gelijk aan 5 x WLL |
| Standaard: | EN 1677-5 |
| Afwerking: | Geverfd groen |
| Certificering: | 2.1, 2.2, 3.1 |

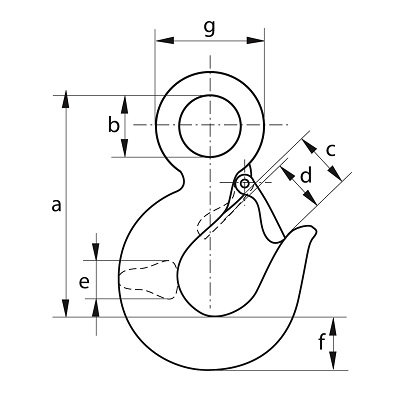

| ART.NR | WLL | a | b | c | d | e | f | g | kg |
| t | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPP6714C00800 | 0.8 | 81 | 19 | 24 | 20 | 16 | 19 | 37 | 0.27 |
| GPP6714C01000 | 1 | 91 | 22 | 26 | 22 | 18 | 22 | 45 | 0.4 |
| GPP6714C01600 | 1.6 | 105 | 27 | 32 | 27 | 20 | 27 | 52 | 0.64 |
| GPP6714C02000 | 2 | 124 | 32 | 34 | 30 | 24 | 31 | 62 | 1.08 |
| GPP6714C03200 | 3.2 | 147 | 39 | 44 | 37 | 31 | 36 | 74 | 1.68 |
| GPP6714C05000 | 5 | 190 | 50 | 55 | 48 | 37 | 48 | 96 | 3.75 |
